Caterpillar TH55FT-E90 PETROLEUM TRANSMISSION Service Manual *Send serial number
$349.00
Taxes included.
Shipping calculated at checkout.
Caterpillar Equipment Service Manuals – Comprehensive, Affordable, and Always in Stock! Get the best service manuals for your Caterpillar equipment with unbeatable benefits.
Model: TH55FT-E90 PETROLEUM TRANSMISSION
Serial number: THE *Send serial number
Parts number: KENR0684
Language: English
Type: Service Manual - New Condition

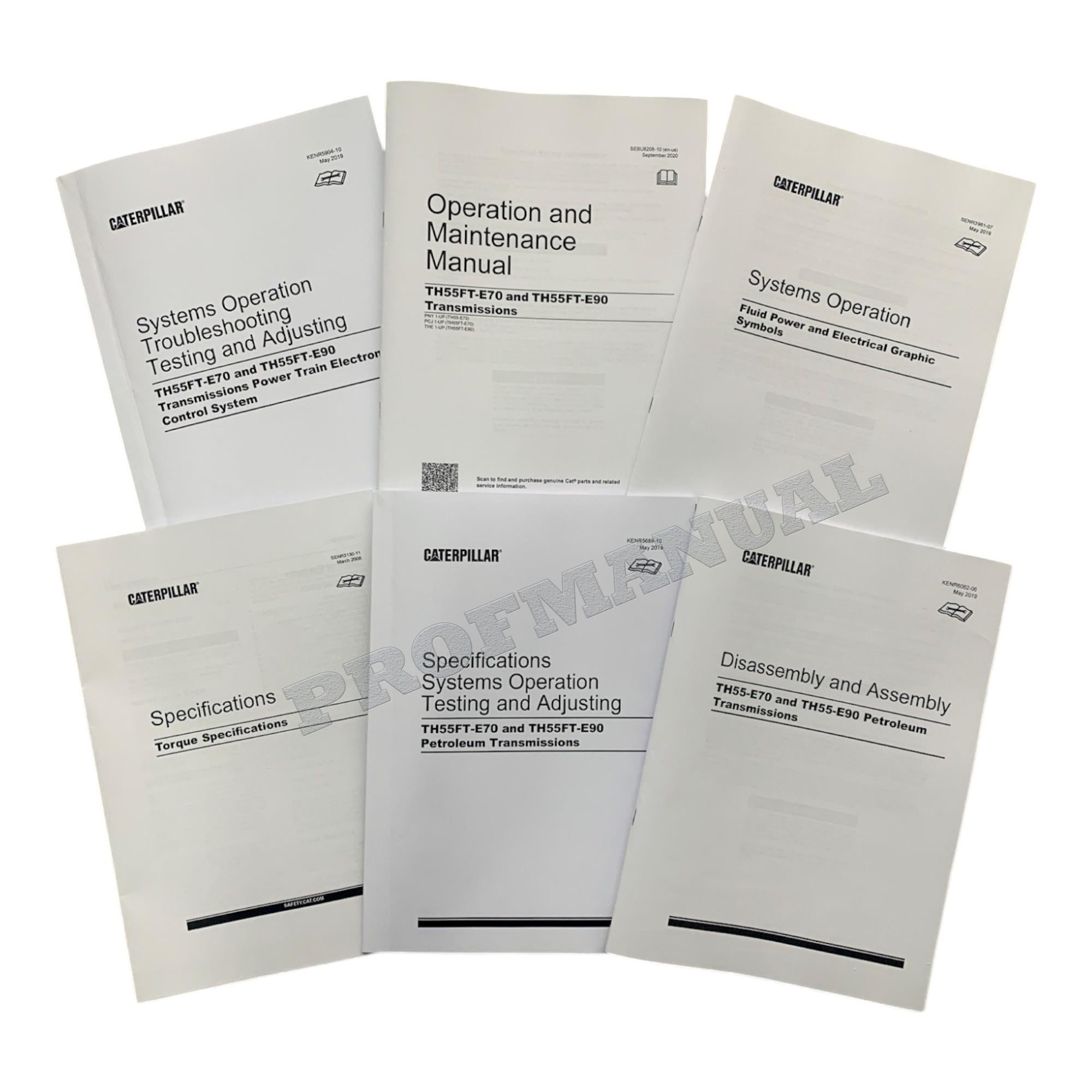

Description:

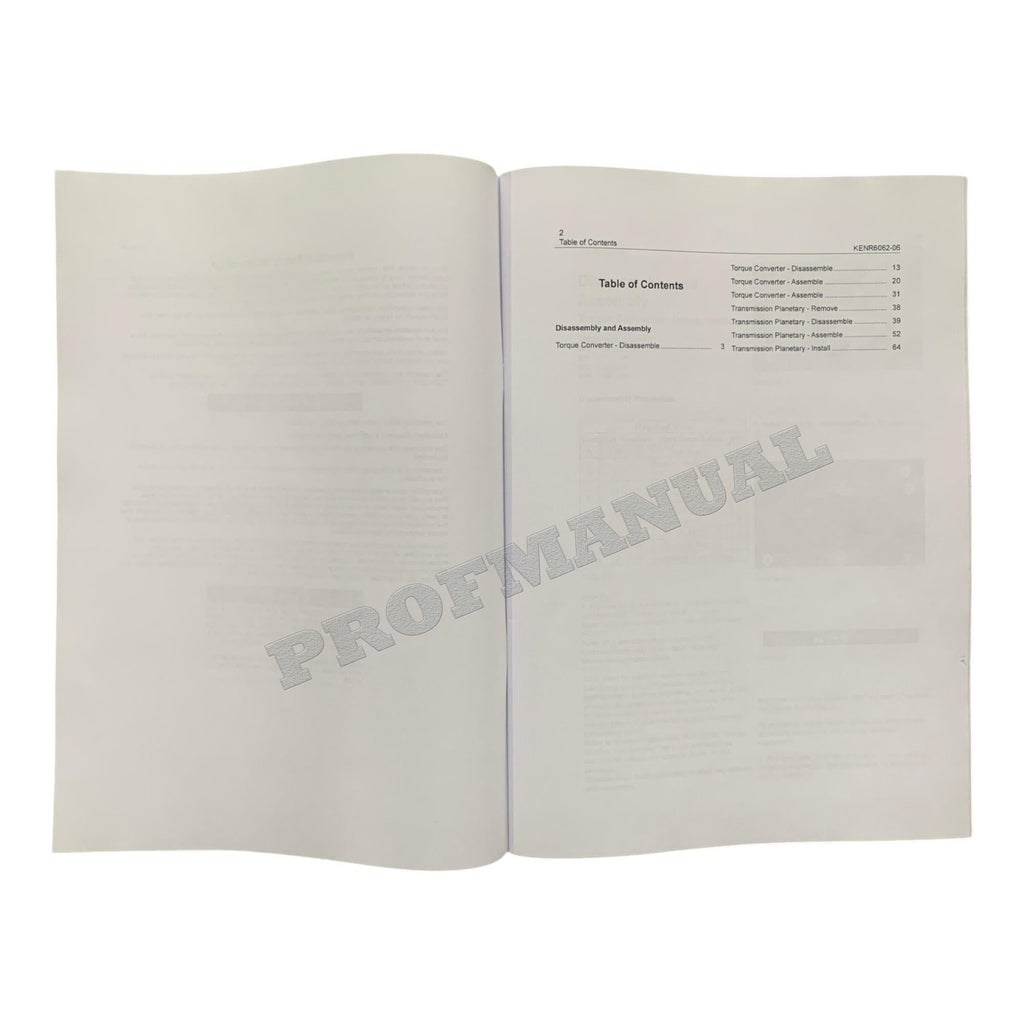

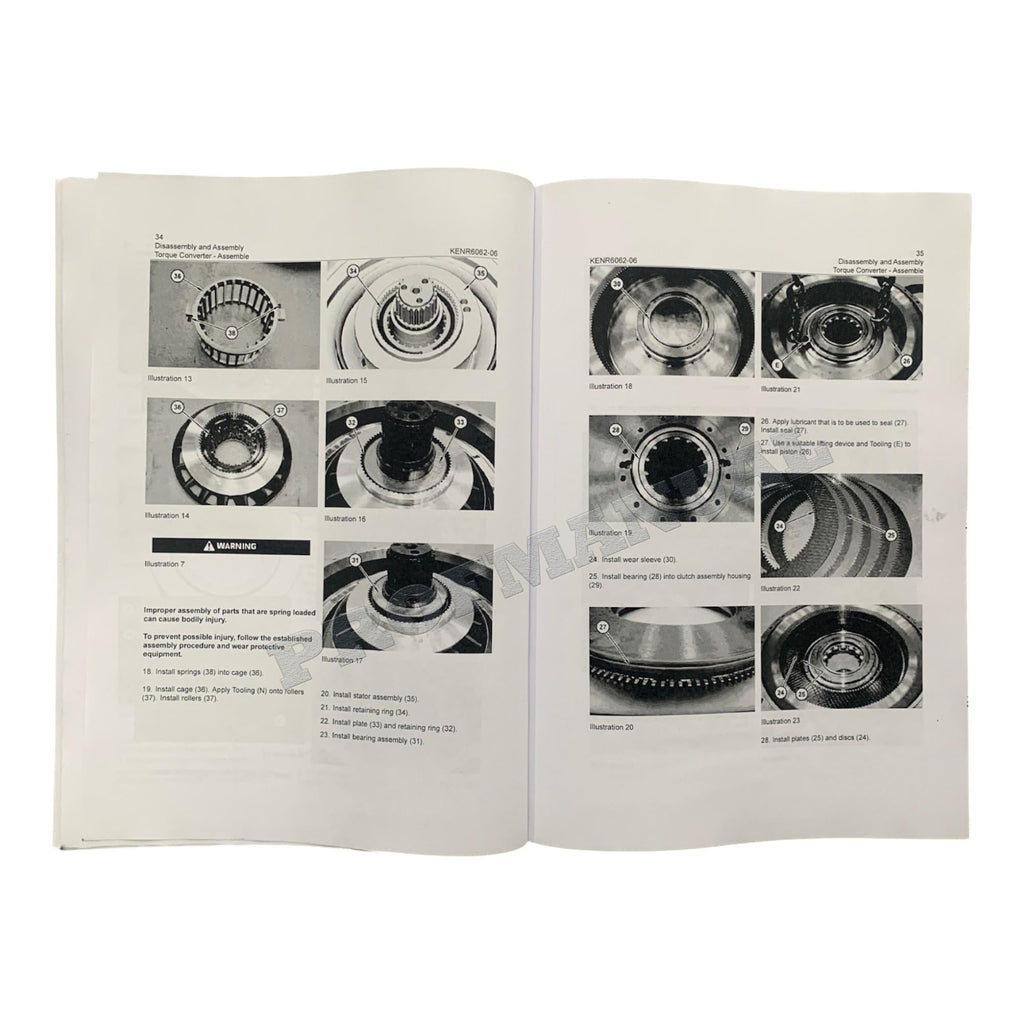

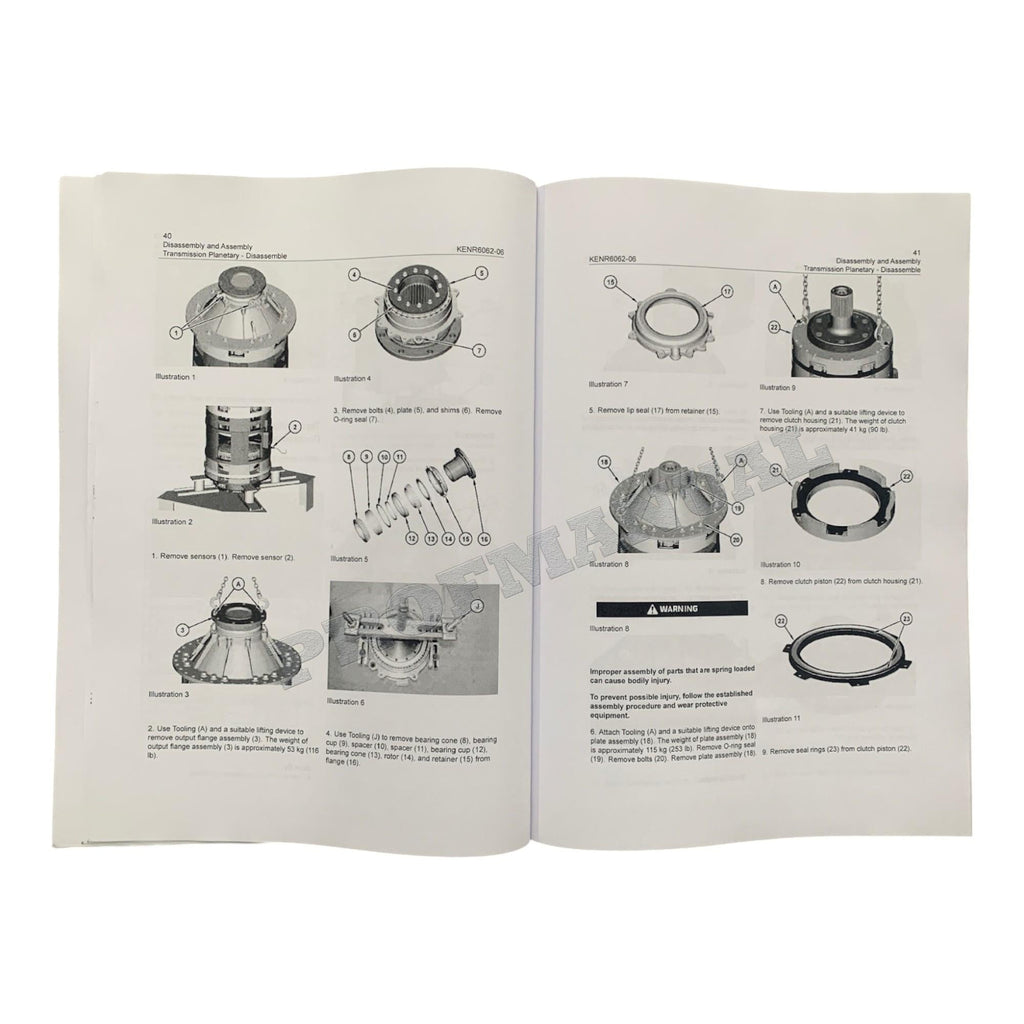

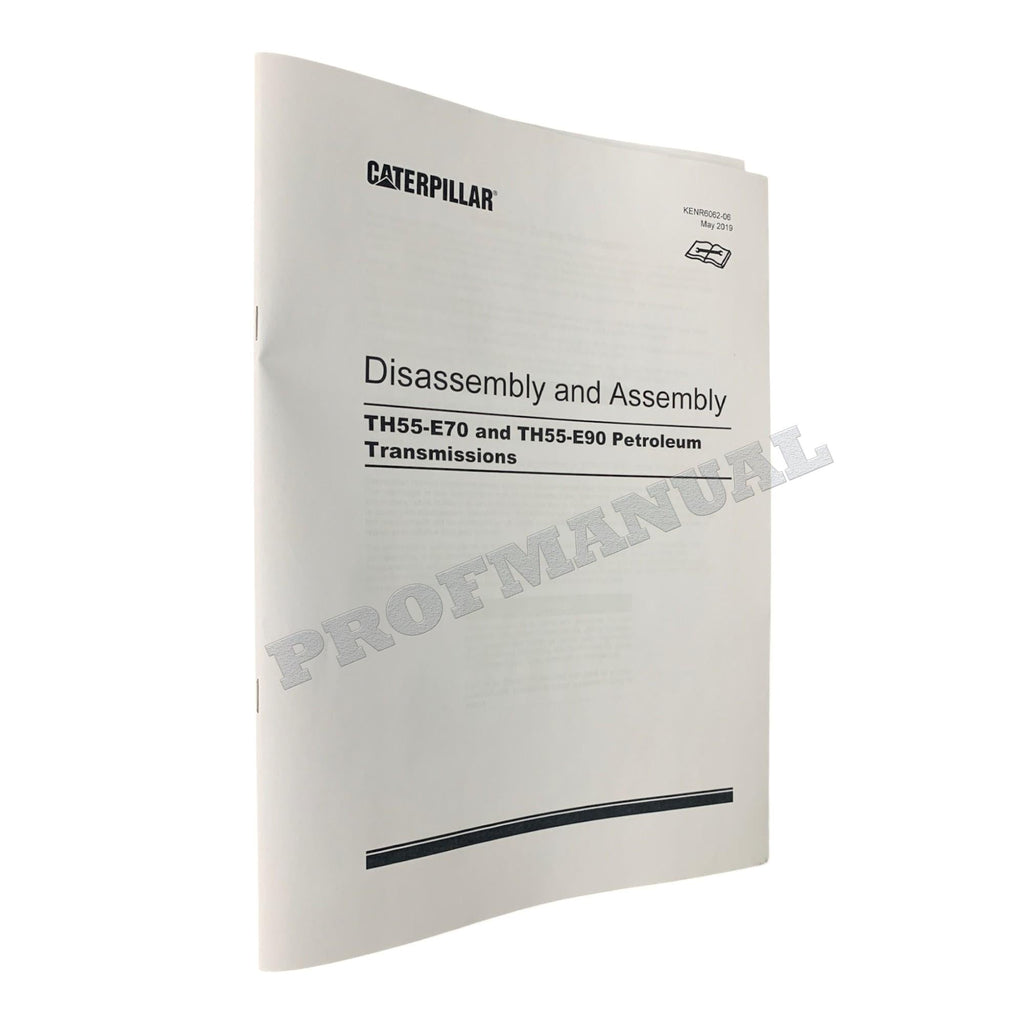

1.Disassembly and Assembly
TH55-E70 and TH55-E90 Petroleum Transmissions
Media Number -KENR6062-06

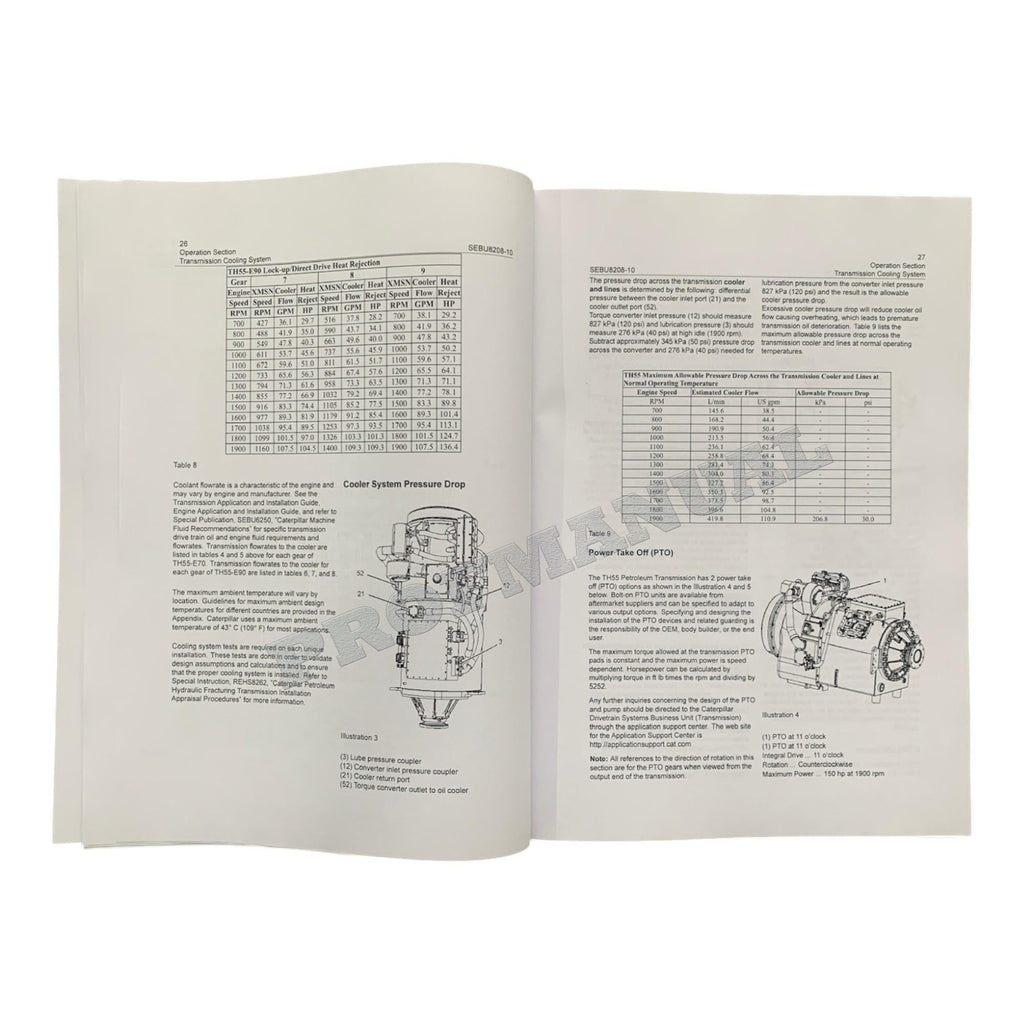

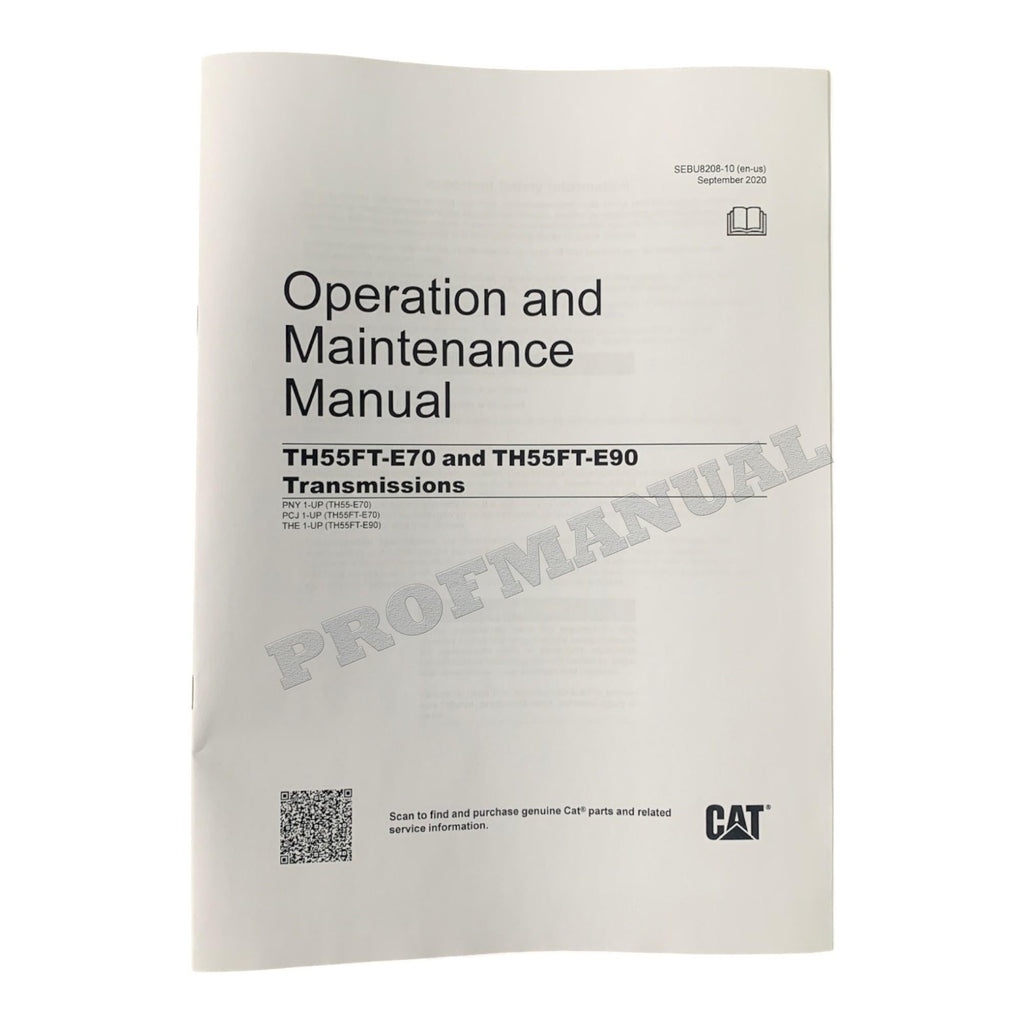

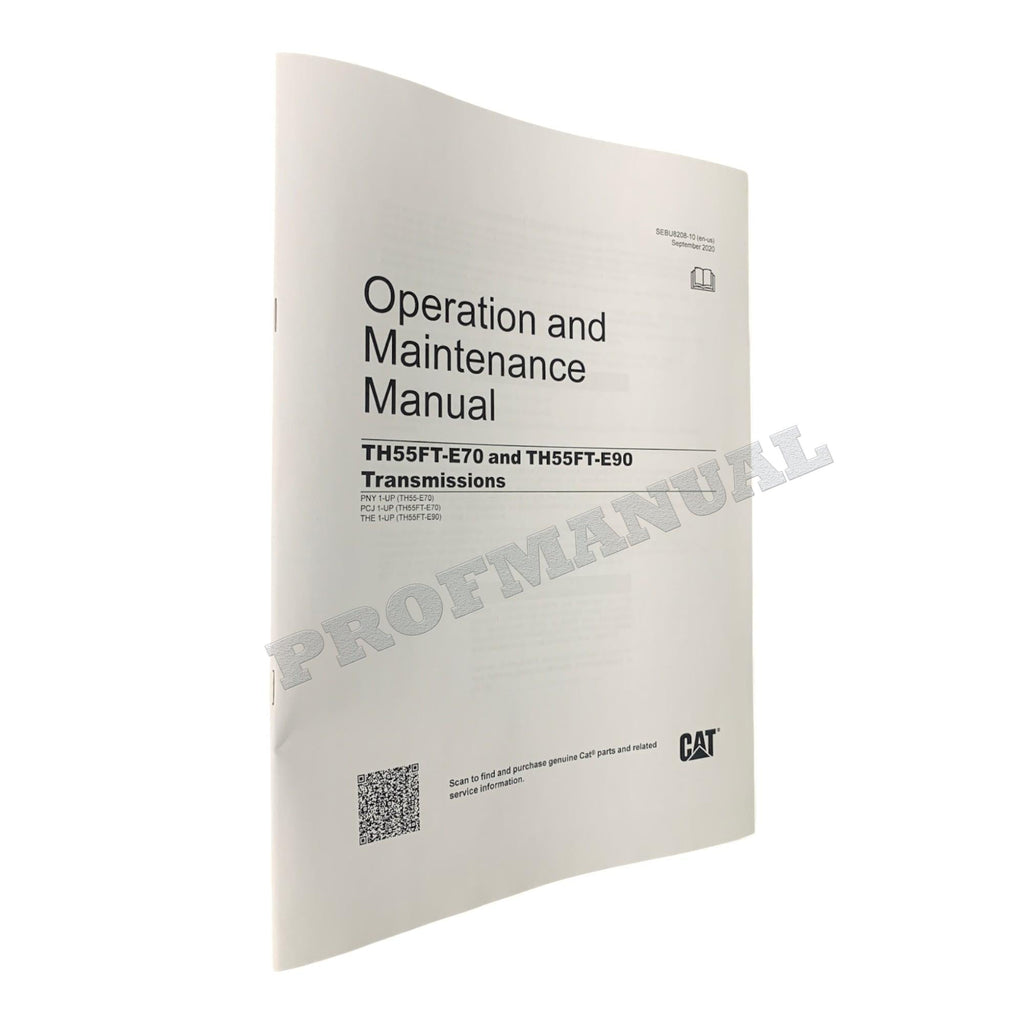

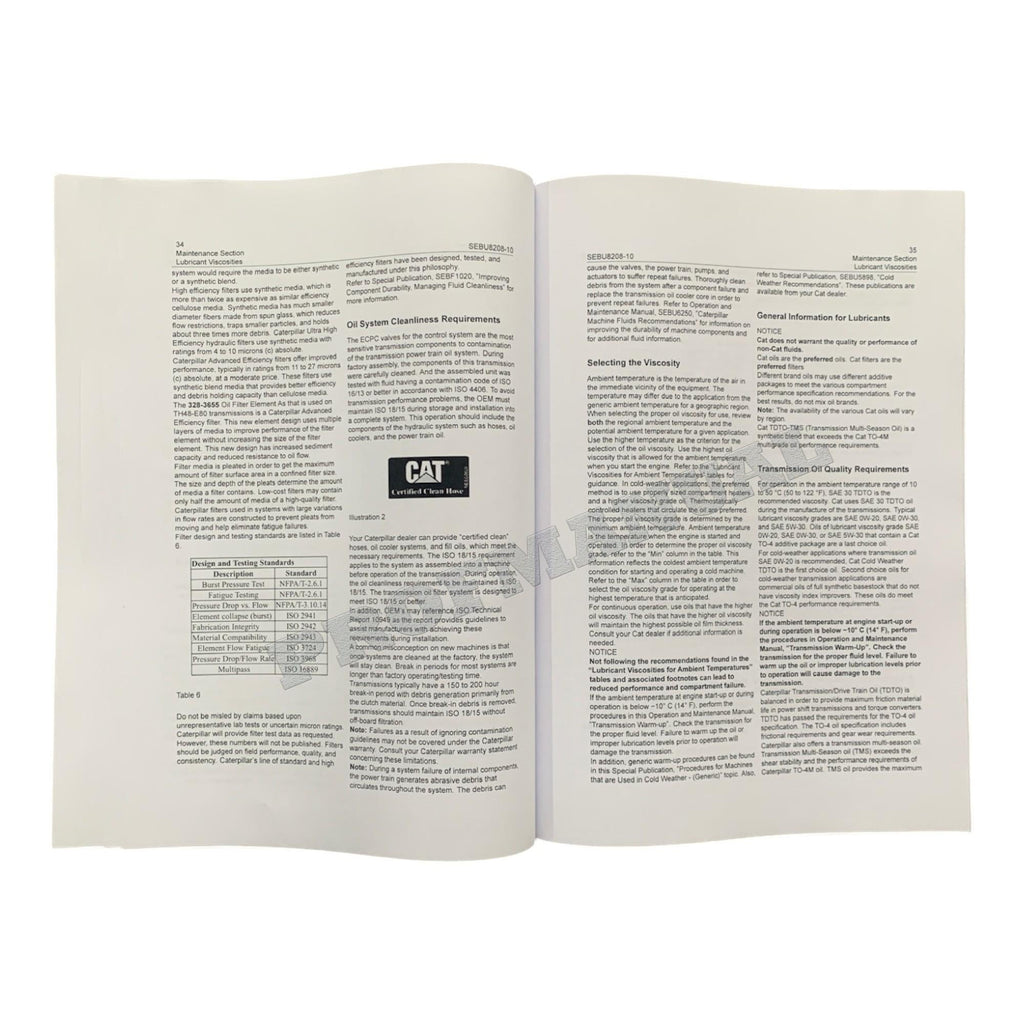

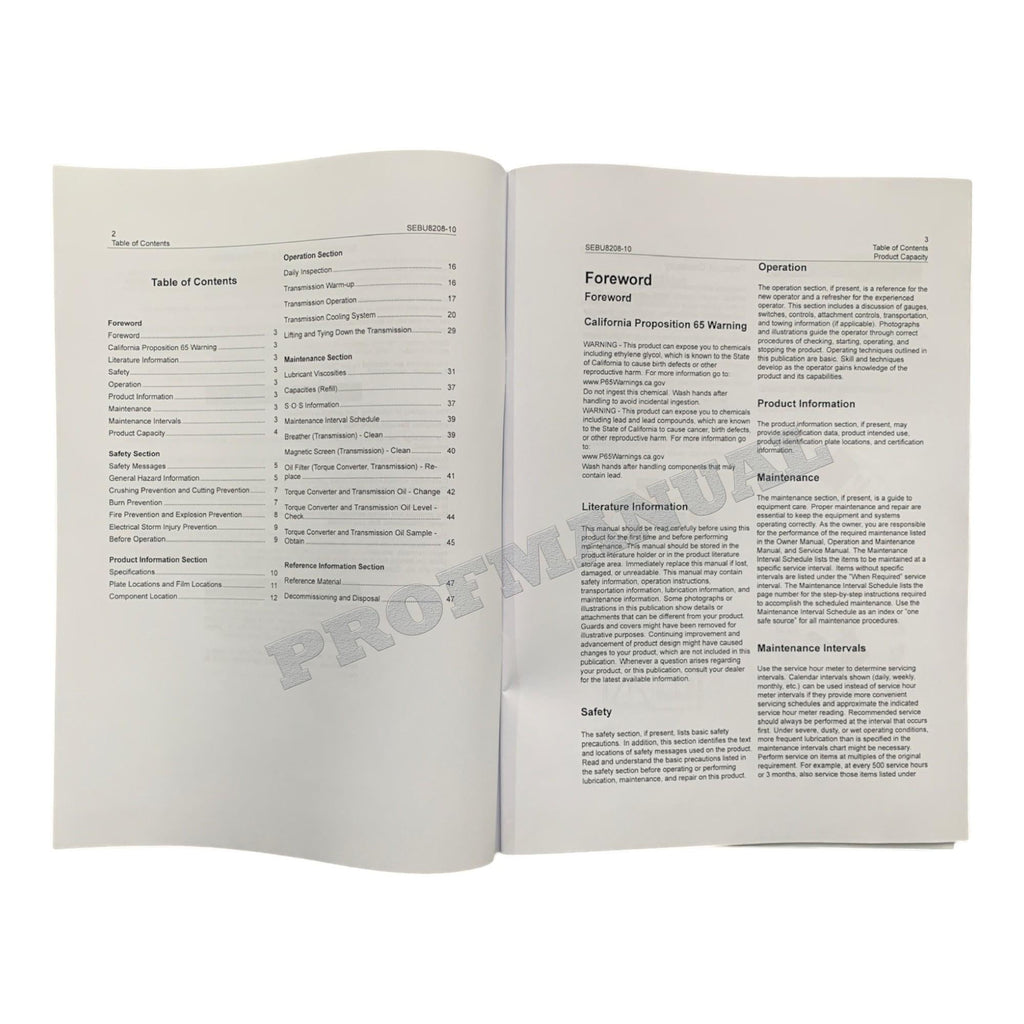

2.Operation and Maintenance Manual
TH55FT-E70 and TH55FT-E90 Transmissions
Media Number -SEBU8208-10

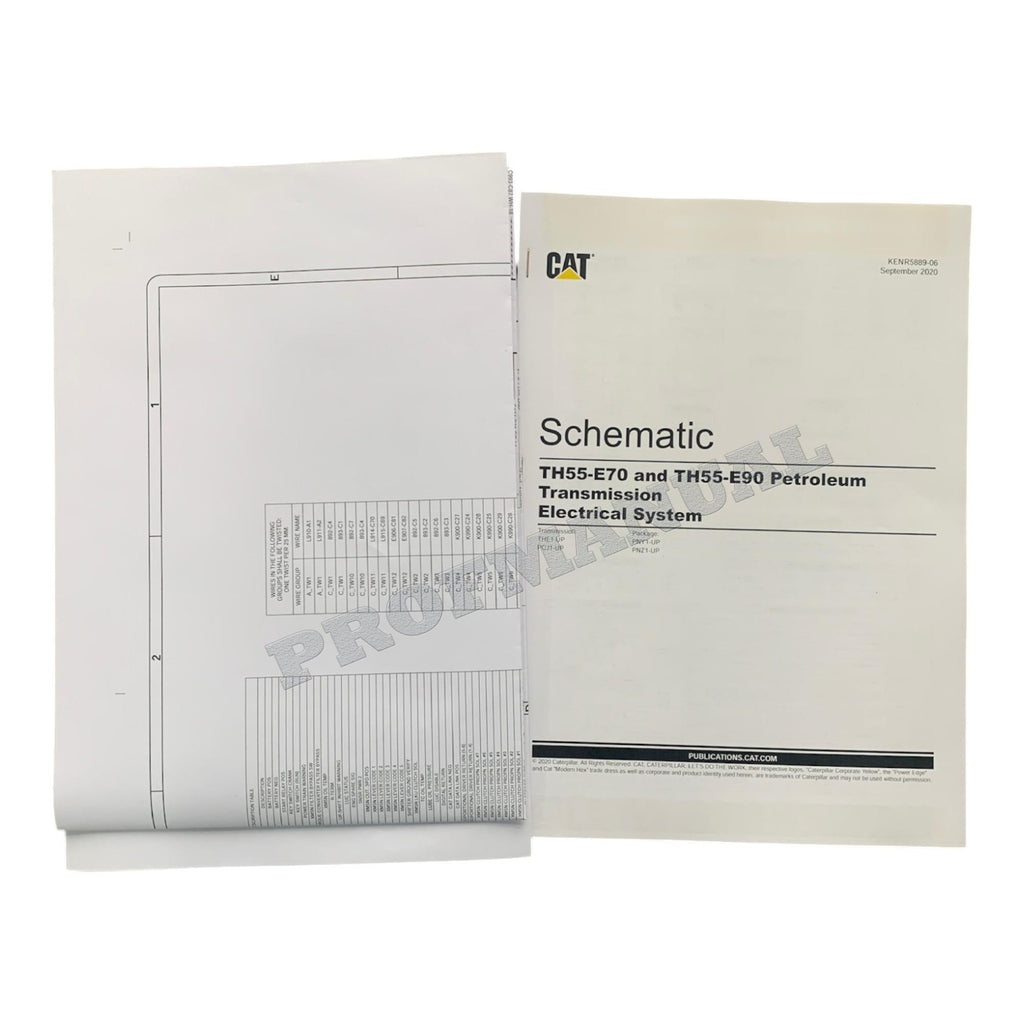

3.Schematic
TH55-E70 and TH55-E90 Petroleum Transmission Electrical System(Interactive)(Function Isolation),292-0053-06 (For Serial Numbers THE1-UP PCJ1-UP PNY1-UP PNZ1-UP)
Media Number -KENR5889-06

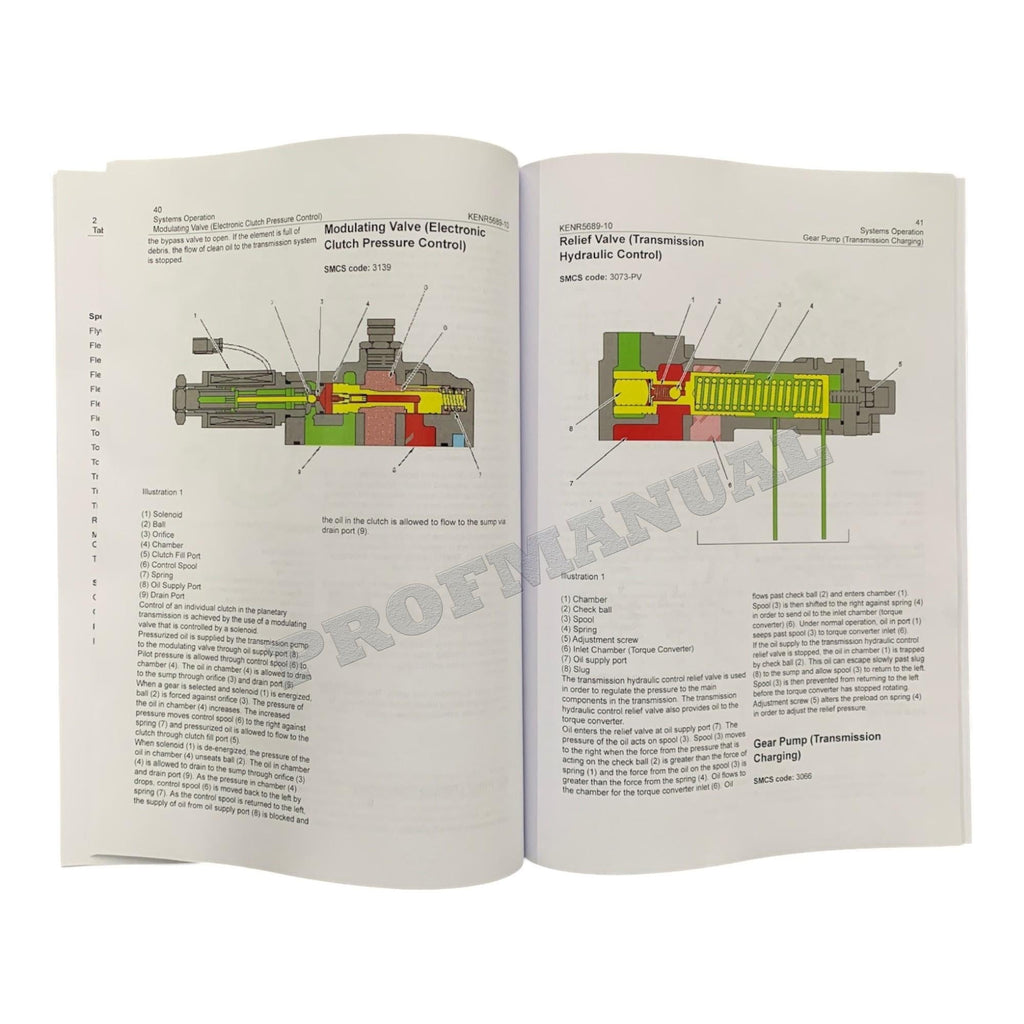

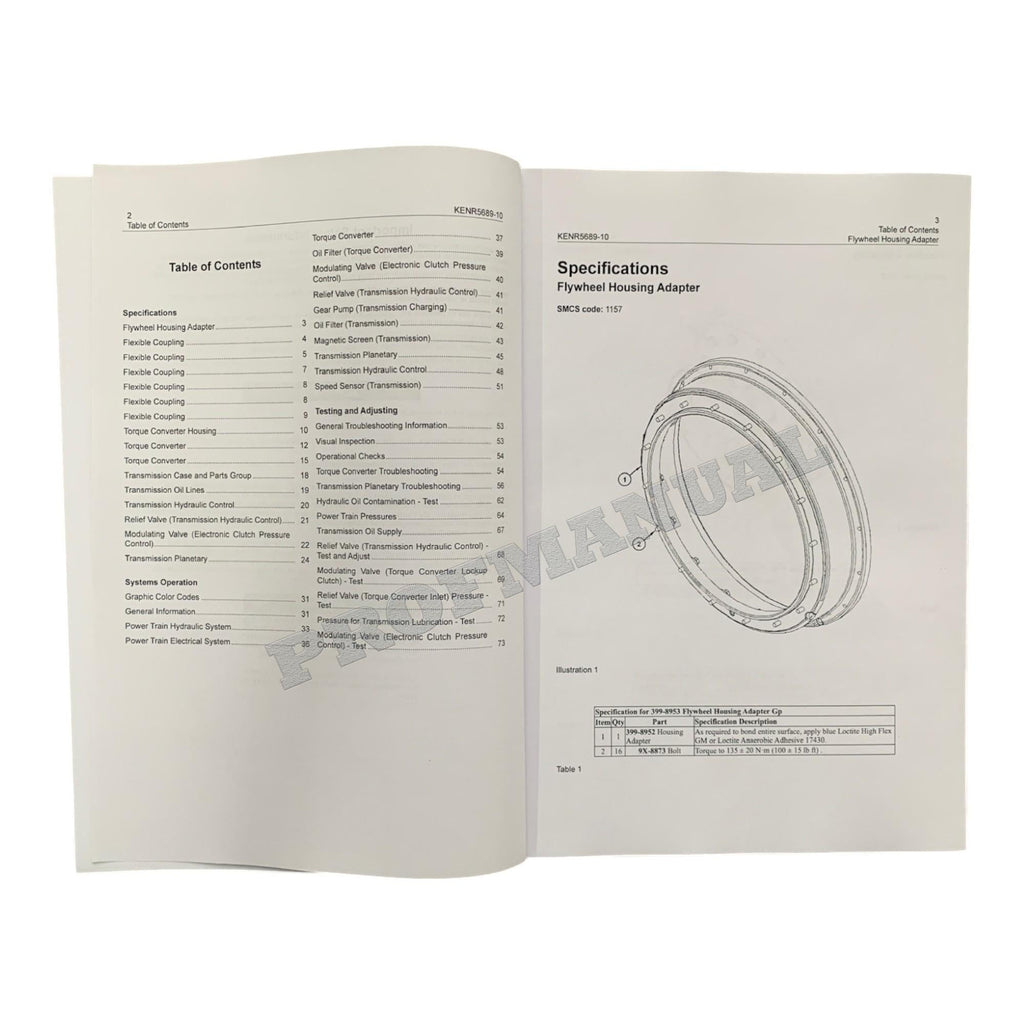

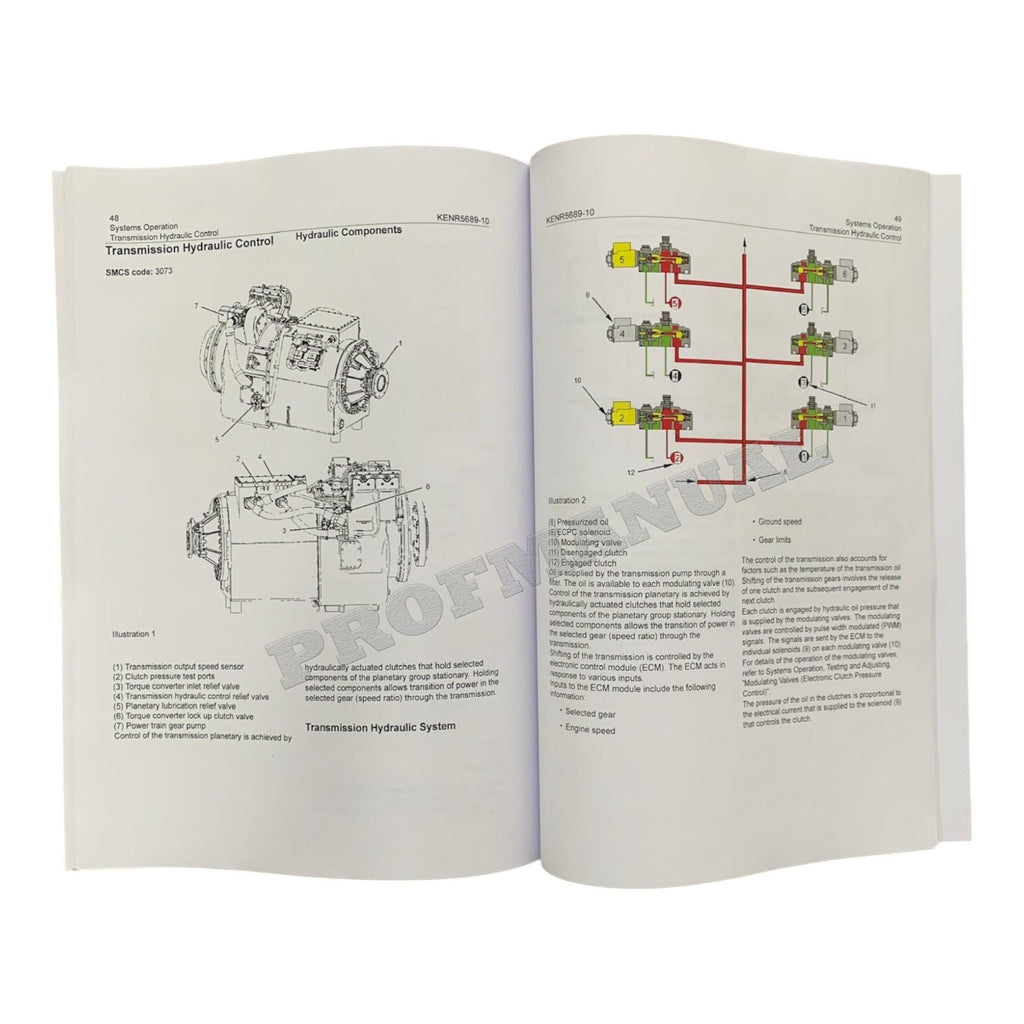

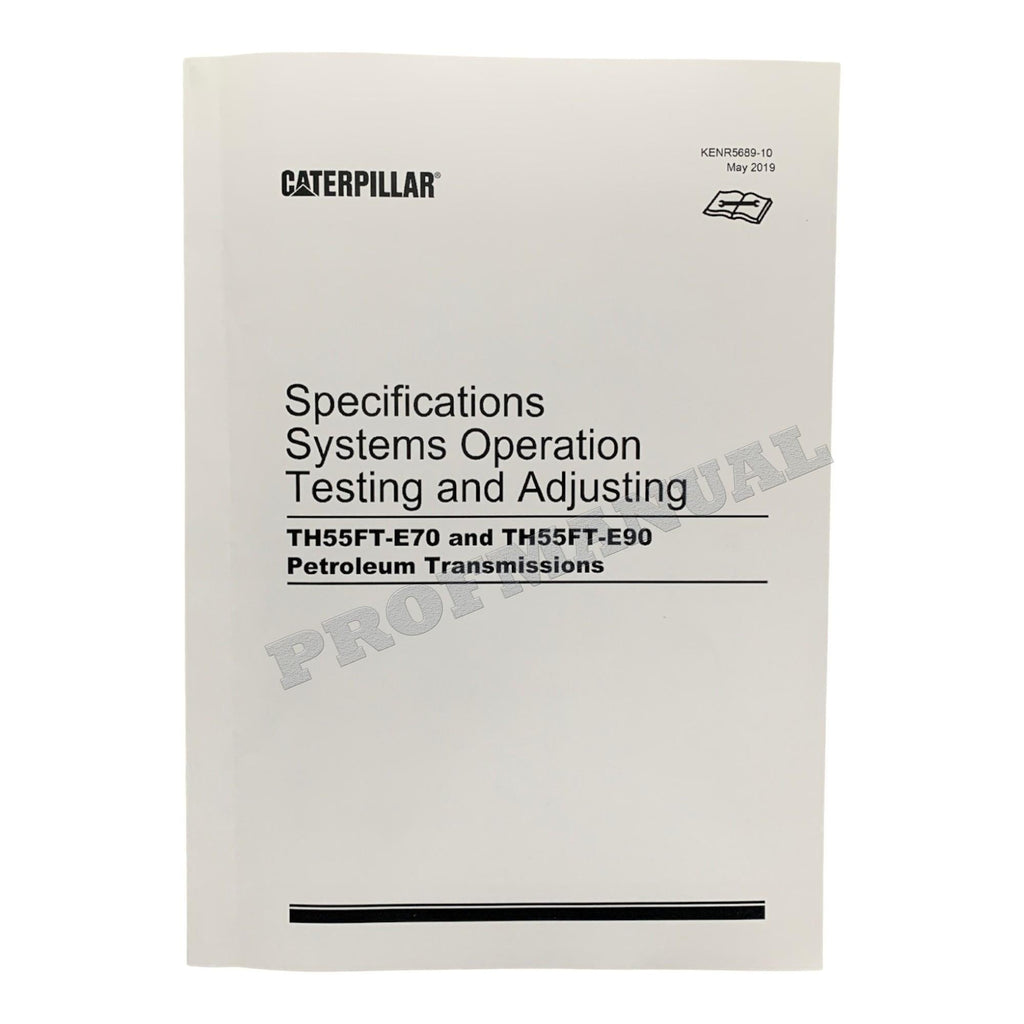

4.Specifications Systems Operation Testing and Adjusting
TH55FT-E70 and TH55FT-E90 Petroleum Transmissions
Media Number -KENR5689-10

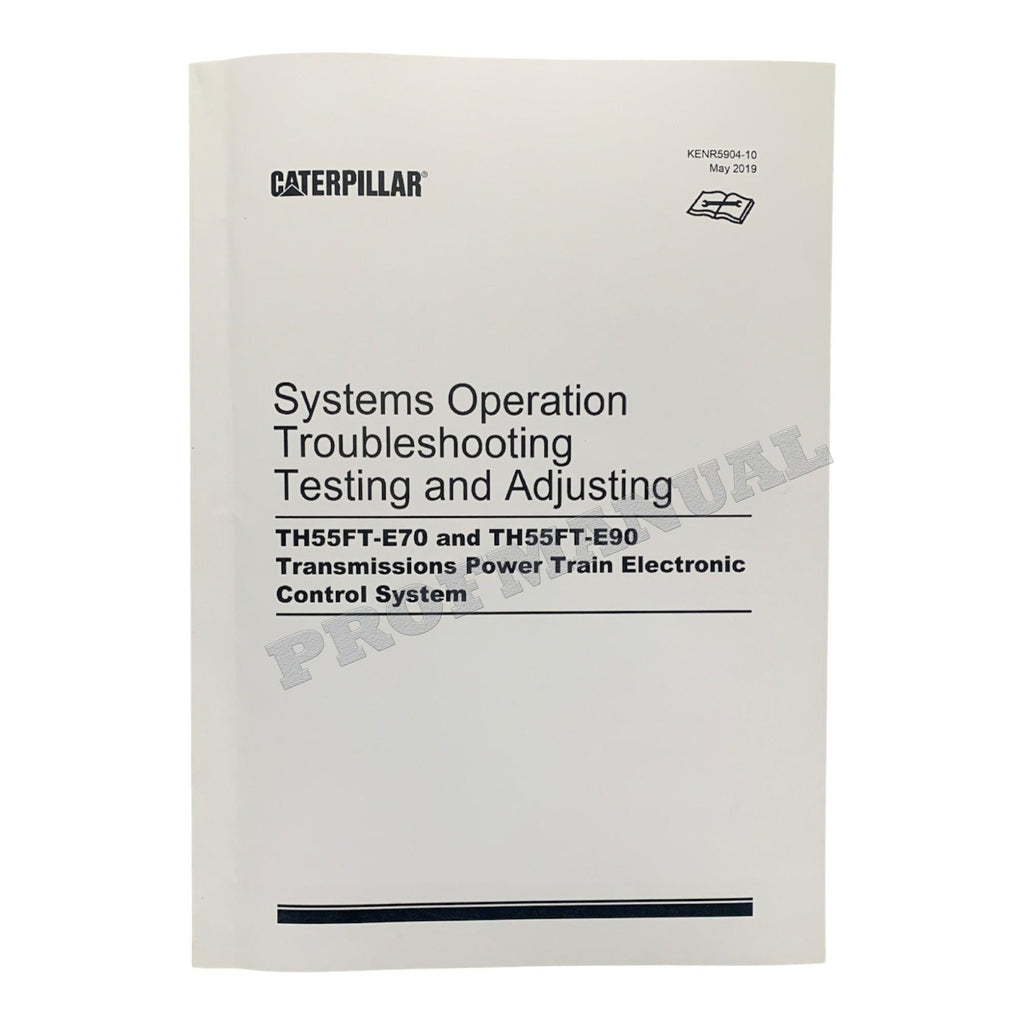

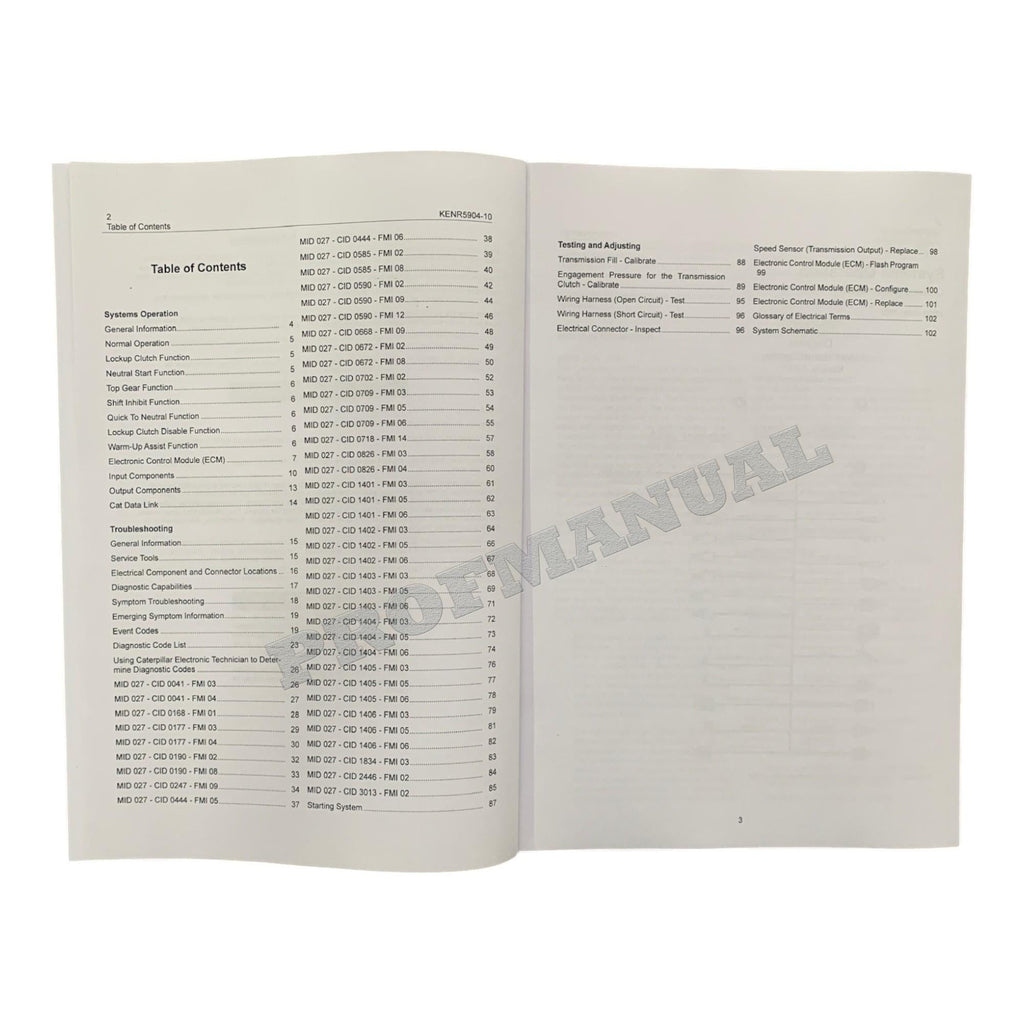

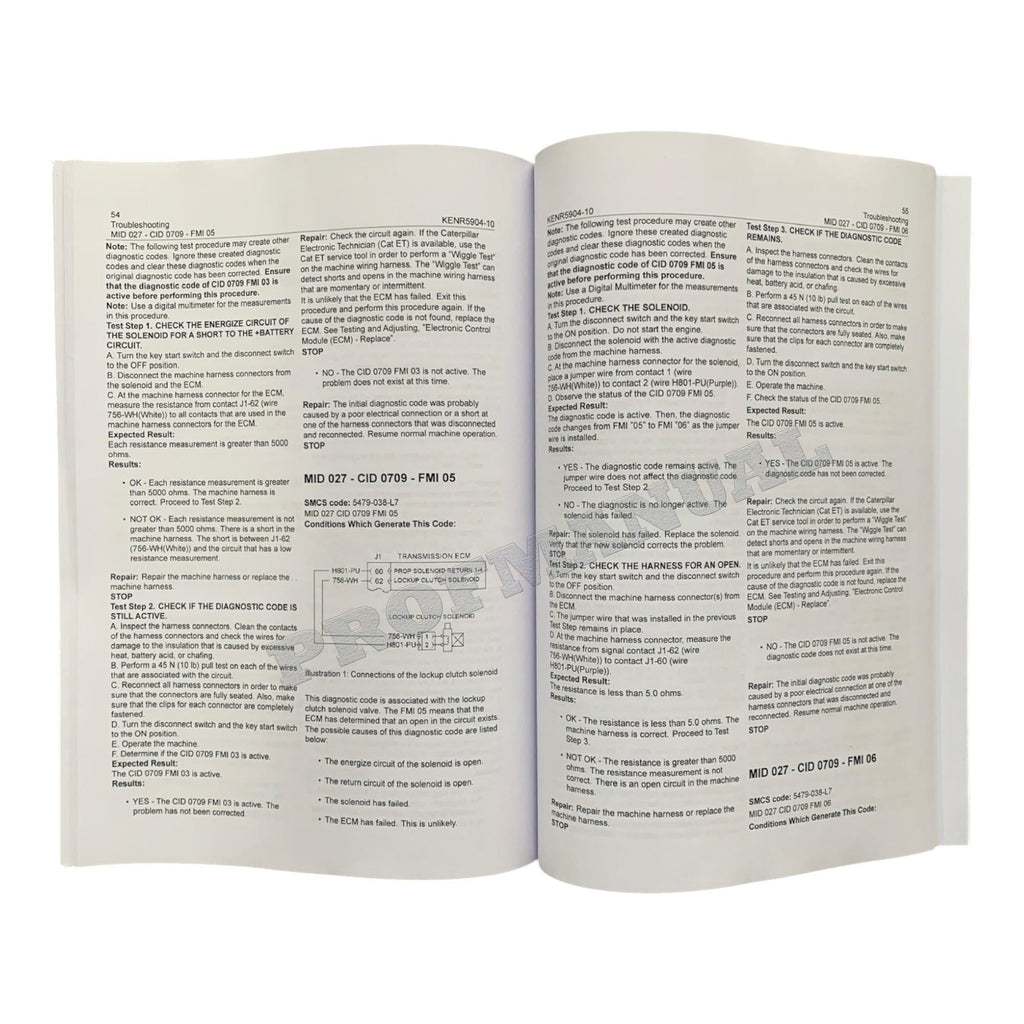

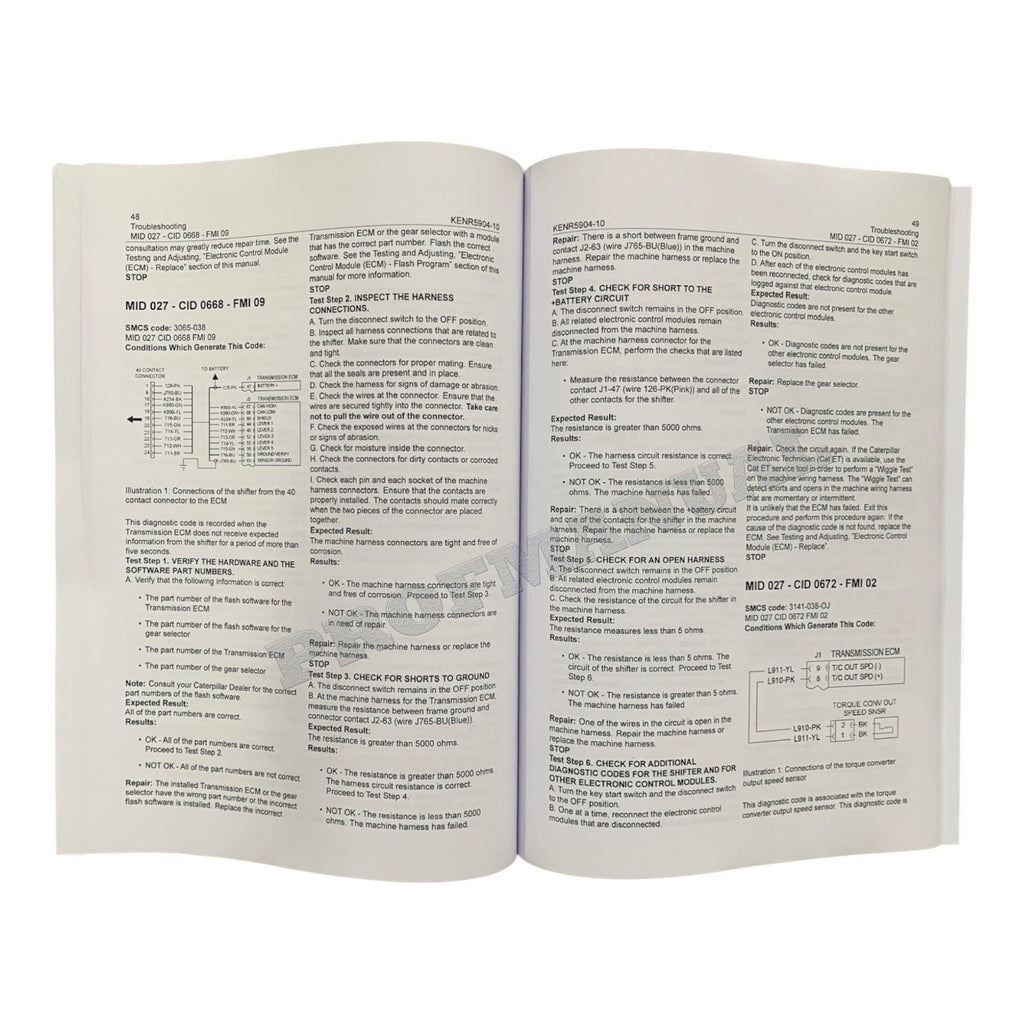

5.Systems Operation Troubleshooting Testing and Adjusting
TH55FT-E70 and TH55FT-E90 Transmissions Power Train Electronic Control System
Media Number -KENR5904-10
6.Torque Specifications
Torque Specifications
Media Number -SENR3130-20
7.Systems Operation
Fluid Power and Electrical Graphic Symbols
Media Number -SENR3981-07
Pickup currently not available
Send us SERIAL NUMBER
To ensure you have purchased the correct manual, please send us the serial number of your machine (check the plate on your equipment) and the year of manufacture. We will verify your purchased manual and recommend any additional manuals or diagrams you may need.
