Caterpillar D6K2 Tractor Electrical Hydraulic Schematic Manual *Send serial number
$115.00
Inkl. Steuern.
Versandkosten werden beim Checkout berechnet.
This is an electrical schematic for the equipment. It is a set of one or more very large sheets of paper, measuring 48 inches x 35 inches with color or black-and-white diagrams. Also, usually a description is attached to the diagrams indicating: 1) The location and numbering of the components on the circuit and on the equipment. 2) Location and numbering of connectors on site and on the equipment. 3) Some diagnostic error codes for CID/MID/FMI and their description. 4) Resistor, Sender, Switch and Solenoid Specifications. 5) HARNESS and WIRE Electrical Schematic Symbols. 6) Illustrations of the equipment. This scheme is ideal for both operation and repair shops and will help you quickly eliminate some malfunctions, thereby ensuring the smooth operation of your equipment and reducing the cost of expensive diagnostics and repairs.
Model: D6K2 Track-Type Tractor Electrical and Hydraulic System
Serial number: RST 1-UP *Send serial number
Parts number: KENR9511 RENR7893 RENR7929 RENR2242
Language: English
Type: Schematics Service Manual
1.Schematic

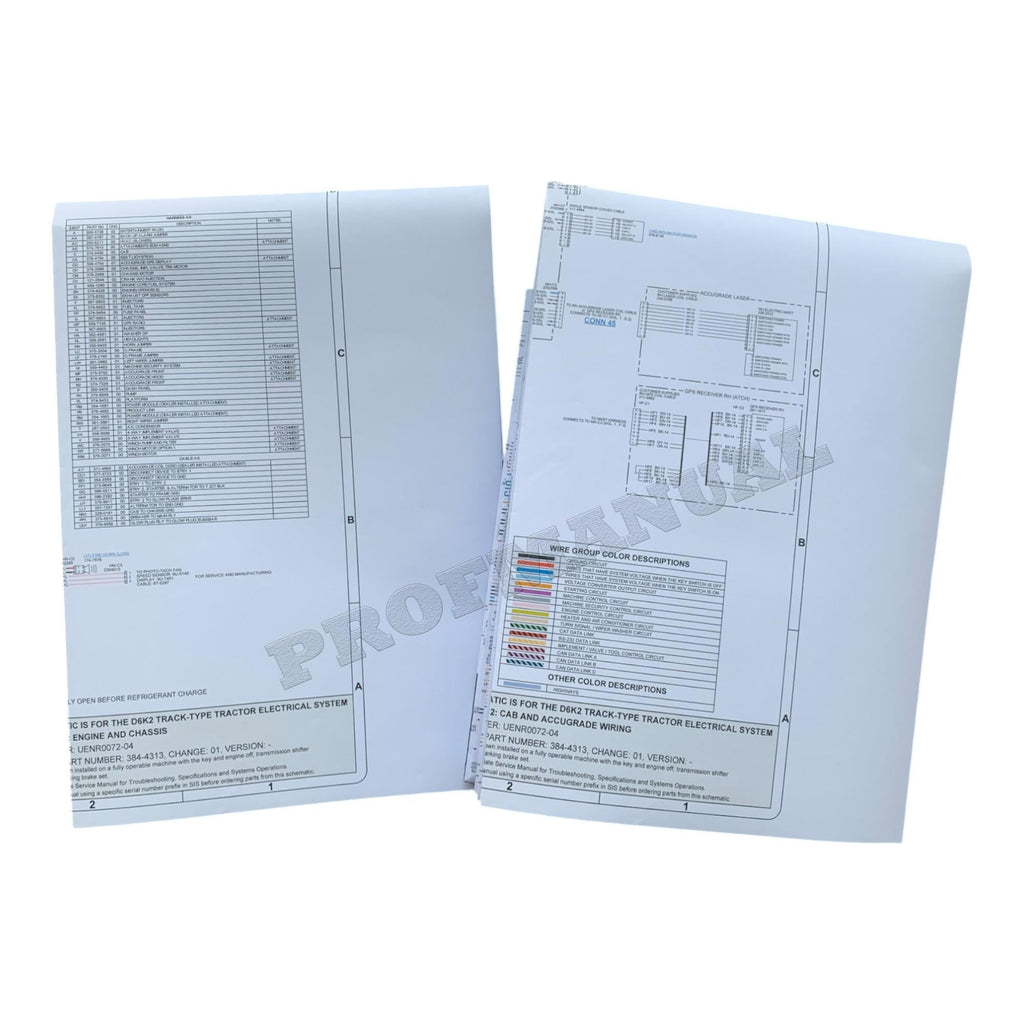

D6K2 Track-Type Tractor Electrical System (Interactive), Engine and Chassis 384-4313-01, Cab and Accugrade Wiring 384-4313-01 (For Serial Numbers WMR1-UP RST1-UP)
Media Number -UENR0072-04
2.Schematic

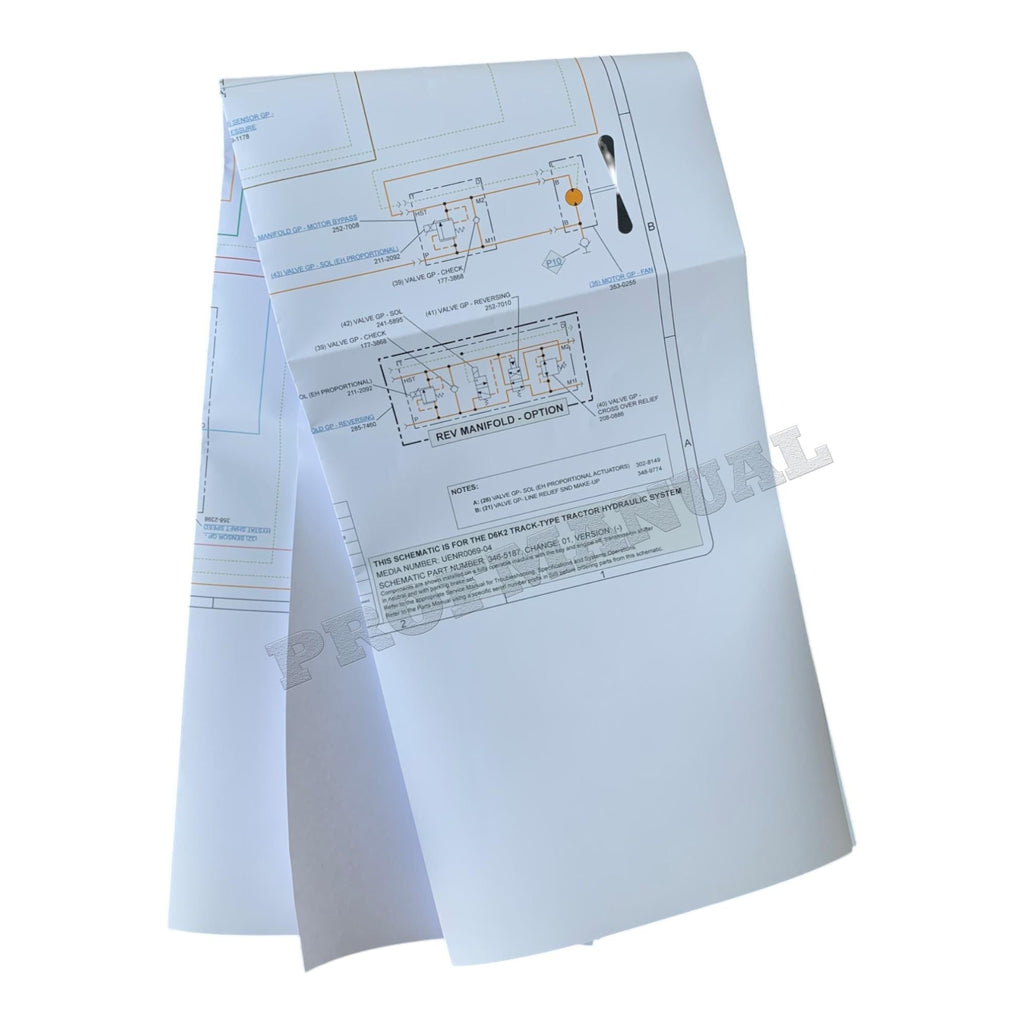

D6K2 Track-Type Tractor Hydraulic System (Interactive), 346-5187-01
Media Number -UENR0069-04
